Podiatry Solutions

Please note: We do NOT carry CCD or CMOS digital imaging solutions due to the low image quality and outdated technology.

XMARU 1210 SGA DR Panel [Rayence]

  • This 10x12 DR Panel system is a perfect flat panel for any podiatry practice. It offers user-friendly, podiatry-specific software and excellent images at a great price point.

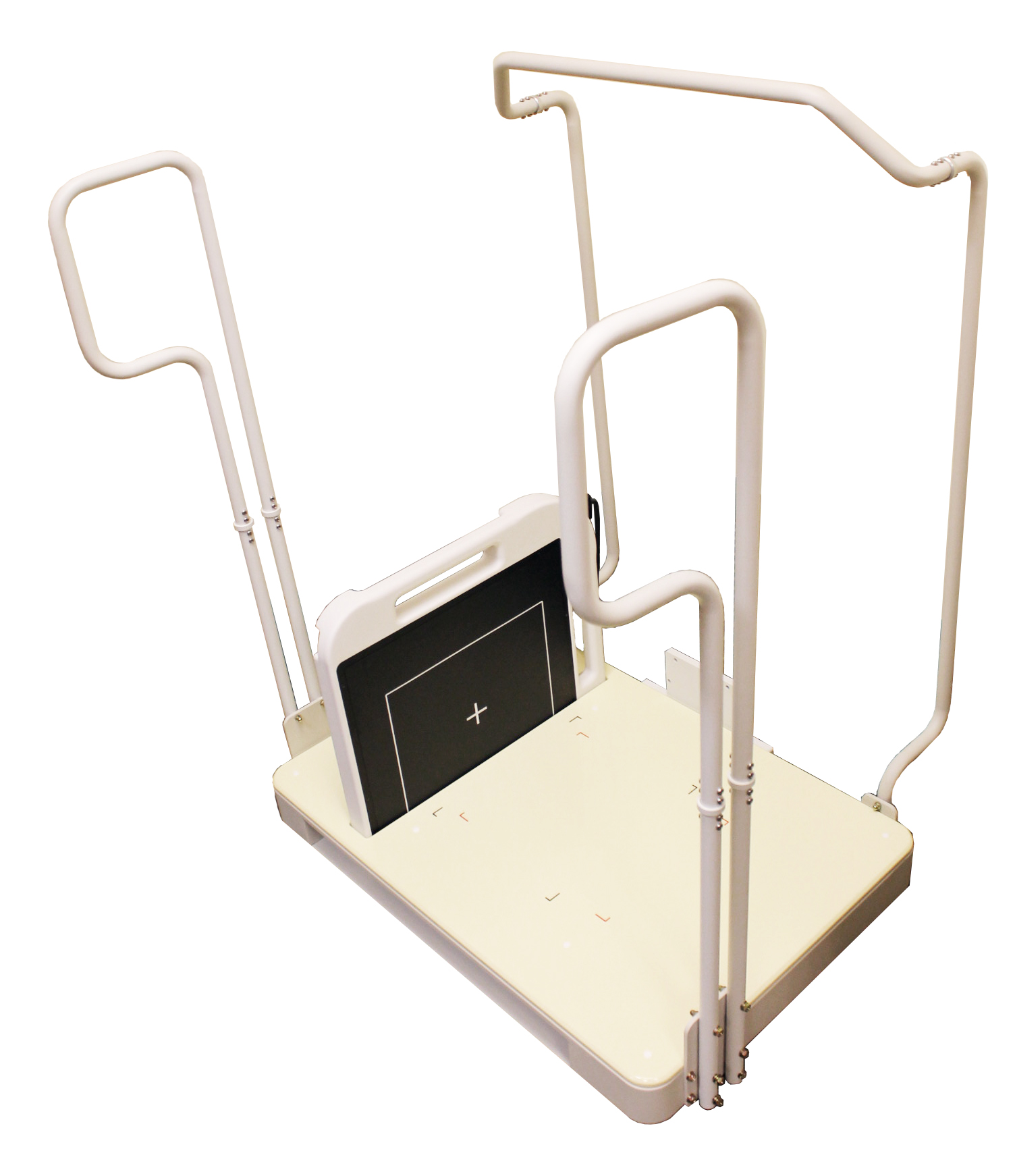

  • The panel is lightweight (6.6 lbs), comes in a protective case and can include a custom-made orthoposer that qualifies for an ADA tax credit up to $5,000!
  • System software includes podiatry-specific annotations such as Bunion Measurement, MAA - Metatarsus Abductus Angle, Proximal Articular Set Angle, Tangential Angle to the Second Axis, DASA - Distal Articular Set Angle, Talo-Calcaneal Angle, Talo-Navicular Angle, and Kite’s angle.
  • Want a demo on the software? Contact us to schedule a web demonstration on how the software works in regular operations.
    •  Sensor Type: Amorphous Silicon with TFT
    • Scintillator: Gadolinium Oxysulfide (Gadox)
    • Active Pixel Area: 264 mm x 365 mm (10” * 12”) 2080×2560
    • Active Pixel Number: 2040mm x 2520mm
    • Pixel Pitch: 127 µm
    • Resolution: 3.9 line pairs/mm
    • Data Acquisition Time: 3 sec.
    • A/D Converstion: 14bit
    • Power Requirements: 115/230V (50~60 Hz)

Vita XE CR System [Carestream]

VitaCR1
  • A time-tested, hospital-grade CR, this system comes standard at a speed of 65 plates per hour (pph).
  • Ideal for all types of offices, especially podiatry practices, the Vita XE comes with two 10x12 cassettes with the option to add additional cassettes (sizes are 14x17, 10x12 or 8x10).
  • A durable, compact, and lightweight system, the Vita XE CR captures high-quality x-rays of any body part with minimal steps for scanning, processing, and imaging quality assurance.
  • Affordable package features a single-plate CR Reader, CR flexible phosphor screens (also called image plates), advanced image management software and a PC-based review station.
  • All imaging parameters are optimized, resulting in digital images that can be enhanced, enlarged, duplicated, and sent to any location in seconds as a DICOM 3.0 file with no loss of resolution. Images also can be printed or archived locally on CDs or DVDs
  • Mounted on an optional wheeled CR cart, placed on a tabletop or installed in a mobile vehicle, the Vita XE system can be used in virtually any location.

Podiatry X-ray Systems [X-Cel]

One of the more highly favored systems in the podiatry market, X-Cel has numerous models fitting all types of specifications and practice needs. All models feature a 28 or 29 inch SID, a 3.5 inch (ADA compliant) or 6 inch high orthoposer, tilting x-ray head on a  bidirectional arm and space-saving options. Please click on the images below to get more information on each system.

Under construction: more to come!
